API Plan 61

API Plan 61

Tapped and plugged atmospheric-side connections for purchaser’s use.

A  Connection plugged

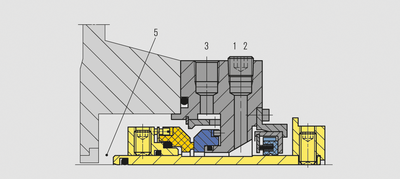

Seal chamber details

1  Quench (Q), plugged, metal
2  Drain (D), open connected to metal tubing
3  Flush (F)
5  Seal chamber


Example seal: EagleBurgmann LL9UC single pusher mechanical seal.

P&ID according to API

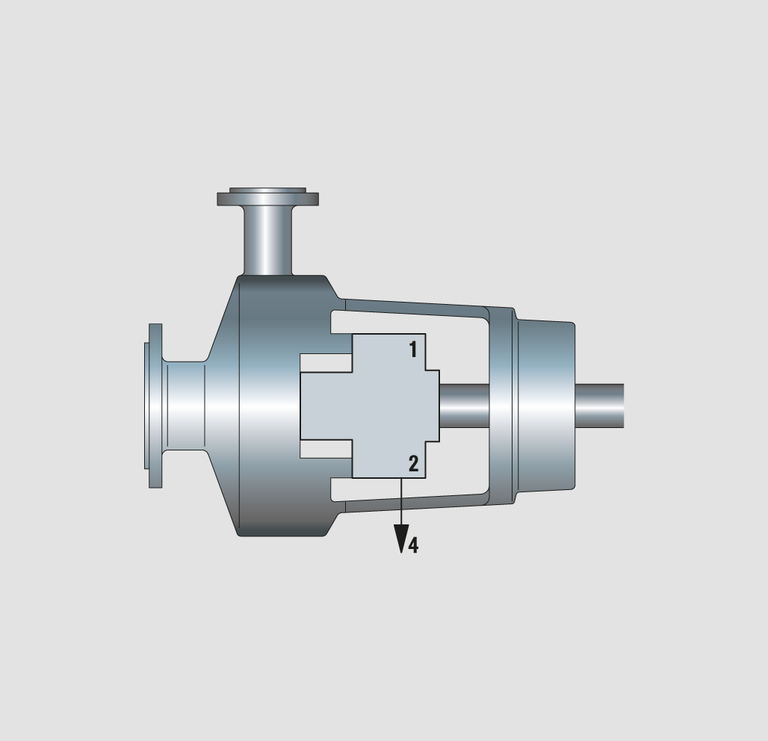

Key

1  Quench (Q), plugged, metal
2  Drain (D), open connected to metal tubing
4  To collection point



Features

  • Normally used for single seals but can be applied for dual seals as well.
  • The ‘Q’ and ‘D’ connections when piped, this plan is converted to Plan 62.
  • The ‘D’ connection can be piped to a drain collection system.

Application

  • On horizontal and vertical pumps as a future provision for Plan 62 or Plan 65

Remarks, checkpoints

  • Ensure that atmospheric side ports are always plugged if not in use as foreign particle entry will cause seal failure.
  • Use metallic plugs or connect the necessary piping by replacing the plastic plugs fitted on the mechanical seal gland plate.

Location, function

  • Atmospheric side
  • Drain

Configurations

1CW-FL, 1CW-FX


2CW-CW*, 3CW-FB*, 3CW-BB*, 3CW-FF*

* Remark: The configurations listed for each individual piping plan are to be understood as recommendations including possible utilizations which may also be applied.



API 682 4th Edition
